Installing a TV above a fireplace is always a balance between aesthetics and comfortable viewing angles. For this project, we installed a Samsung Frame TV Pro using the MantelMount MM815 motorized mount combined with the RB100 recessed box system to create a clean, low-profile finish that still delivers a premium viewing experience.
The goal was simple: make the TV look like artwork when not in use while keeping full functionality and comfortable viewing height when lowered.
Project Overview
For this installation, we used:
- Samsung Frame TV Pro
- MantelMount MM815 motorized fireplace mount
- MantelMount RB100 recessed box
- In-wall cable management
- Fireplace wall mounting system
- Flush low-profile installation design
The homeowner wanted the television to blend naturally into the living room without bulky hardware being visible from the side.

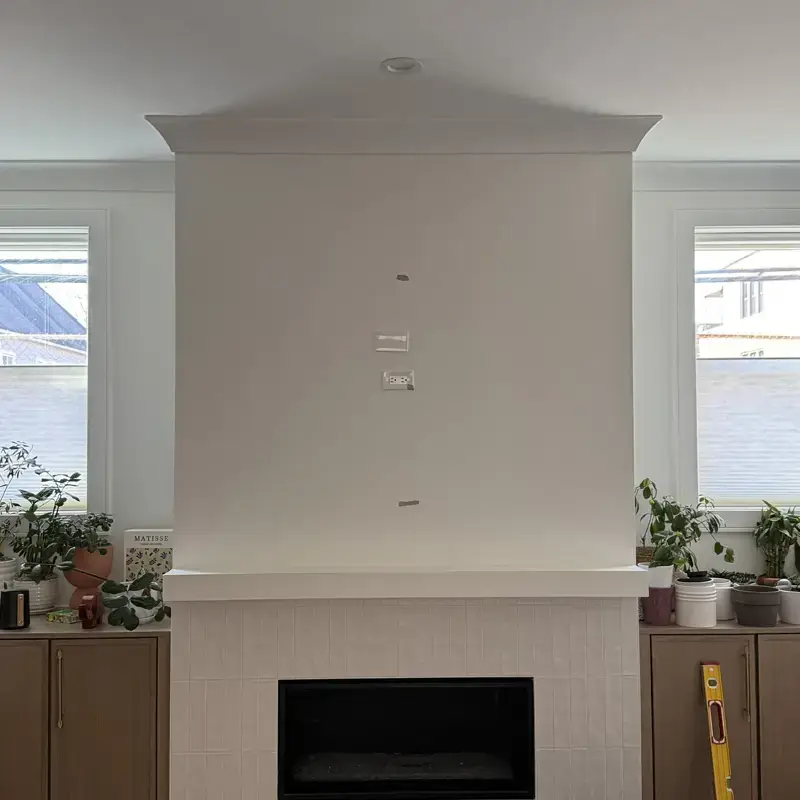

Before the Installation
Before starting the installation, we carefully measured the fireplace wall, stud locations, viewing height, and recessed box placement.
Because the mount would be partially recessed into the wall, accurate planning was critical. Even small alignment issues can become very noticeable once the TV is mounted.

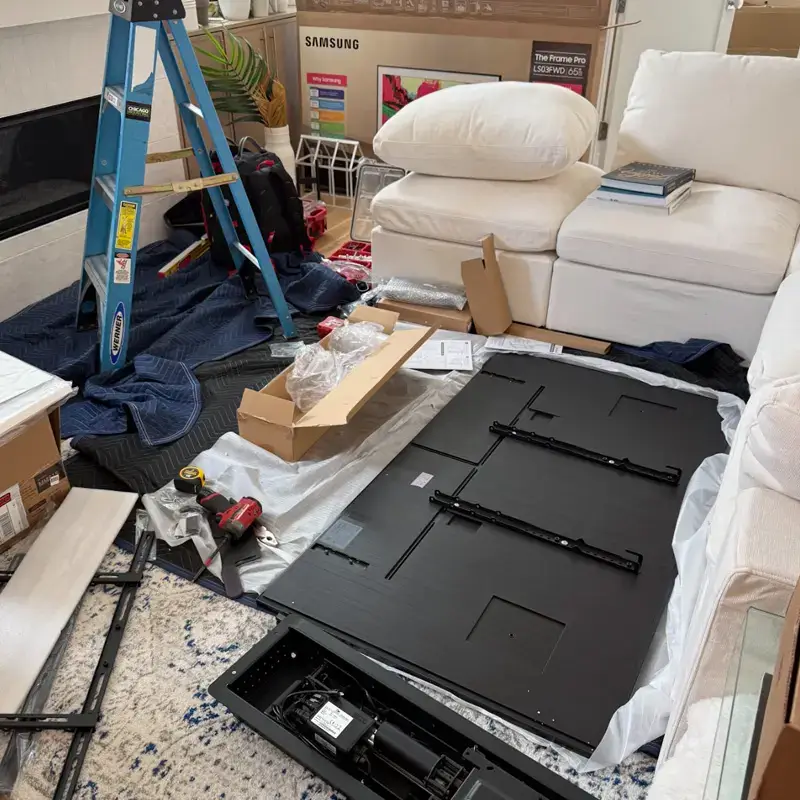

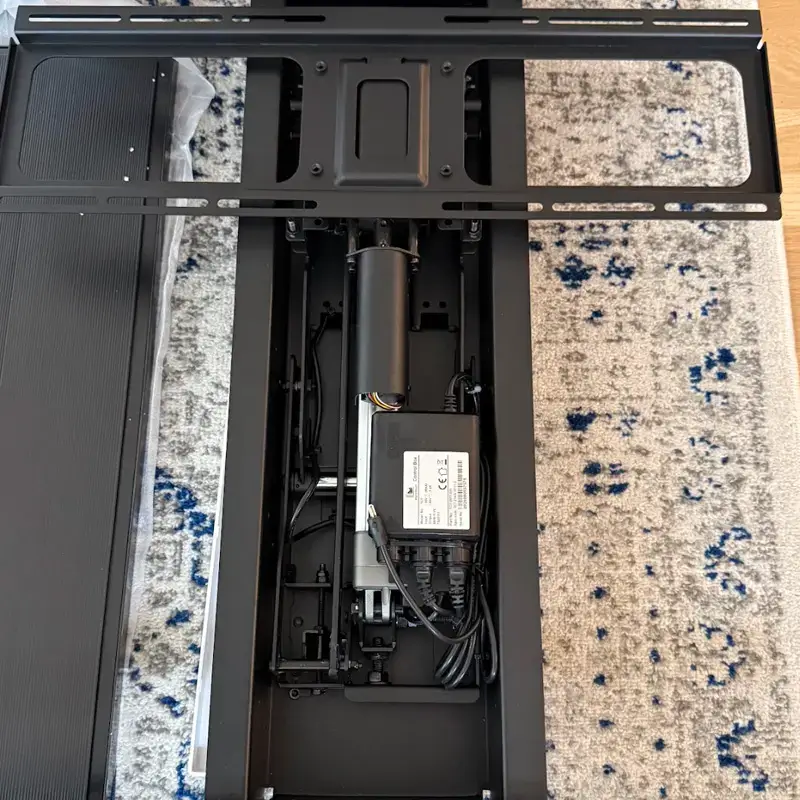

Preparing the Samsung Frame TV Pro and MantelMount System
Before cutting into the wall, we assembled and inspected all hardware components, including the Samsung Frame TV Pro, MantelMount MM815 system, and RB100 recessed enclosure.
This combination is one of the cleanest solutions available for fireplace TV installations because it allows much of the mounting hardware to disappear into the wall cavity.

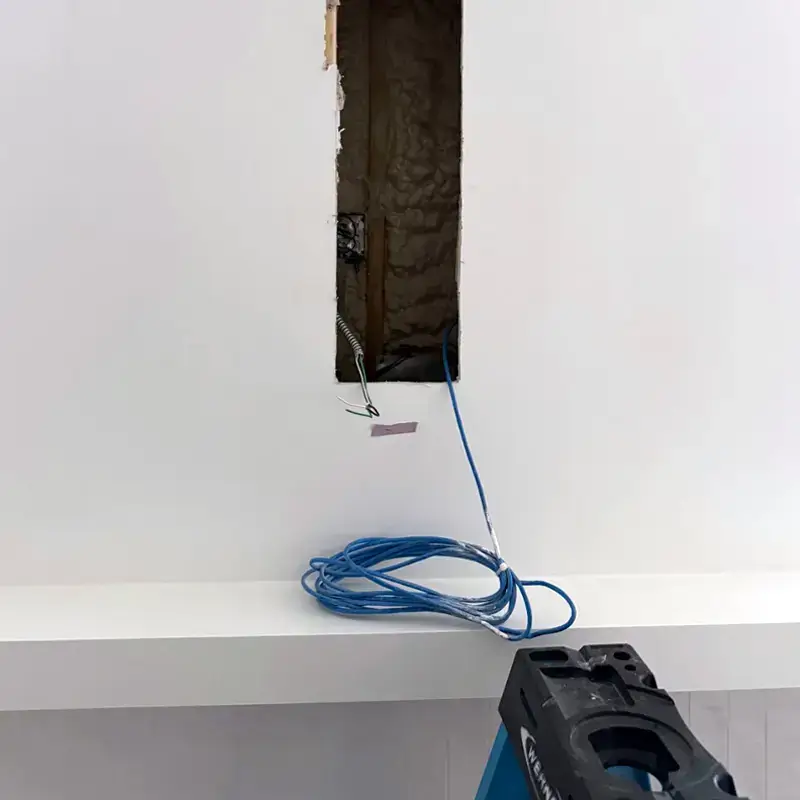

Installing the RB100 Recessed Box
The next step was creating the wall opening for the RB100 recessed box.
The RB100 enclosure allows the MantelMount arm and mounting hardware to sit deeper inside the wall, significantly reducing the visible side profile once the TV is installed.
Proper stud placement and reinforcement are critical for this type of installation, since the mount must safely support the television while moving smoothly up and down.

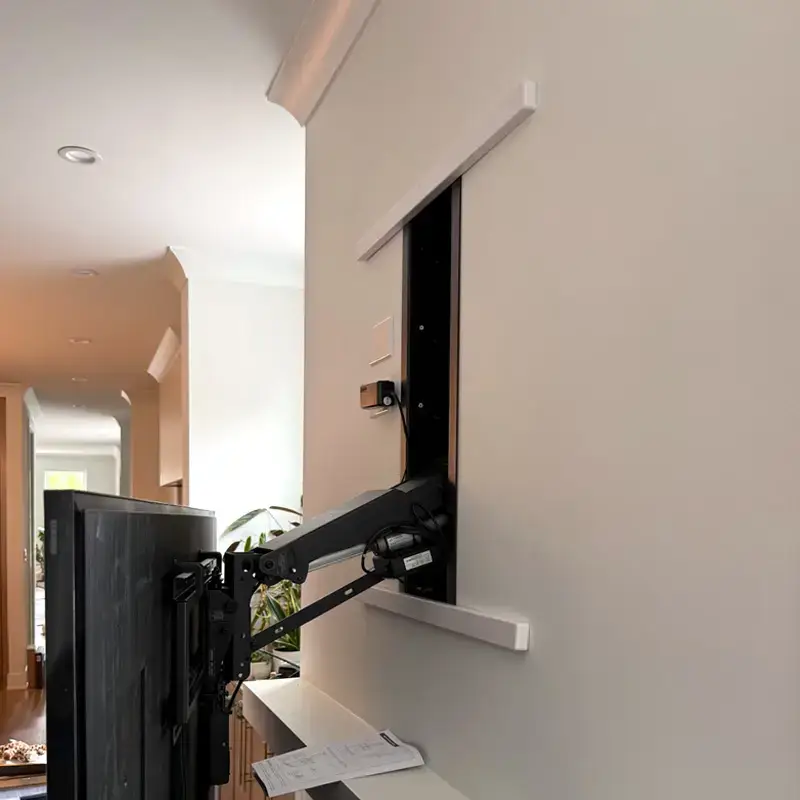

Mount Installation and Internal Hardware Setup
After the recessed box was secured, we installed the MantelMount MM815 hardware and carefully aligned the mounting mechanism.
This stage requires precise leveling and spacing to ensure the television remains perfectly balanced while raising and lowering.
The recessed design also helps hide most of the mechanical components from side viewing angles.

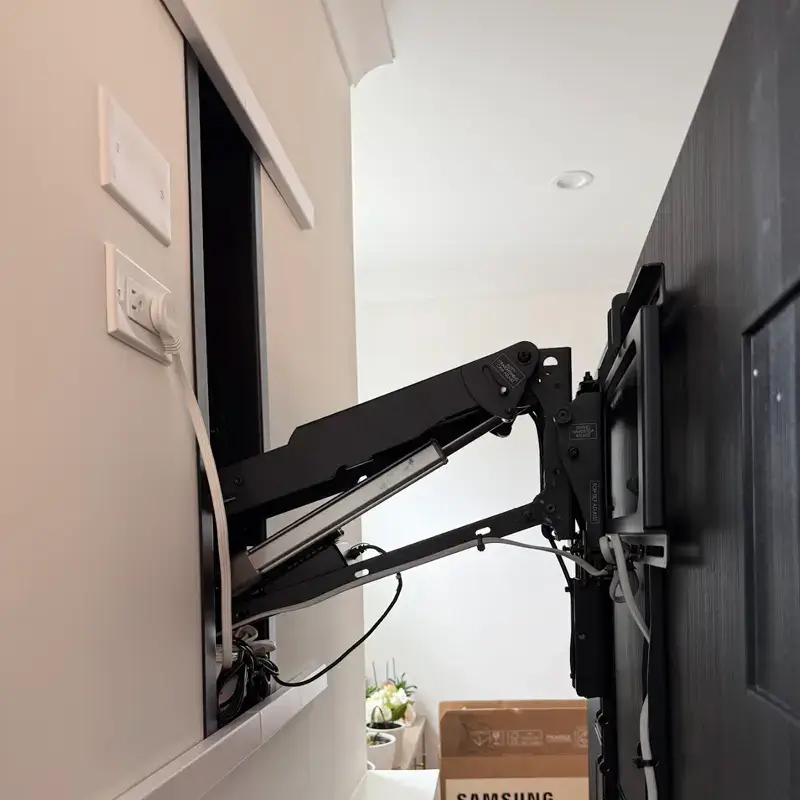

Side Profile and Flush Appearance
One of the biggest advantages of combining the MM815 with the RB100 recessed system is the improved side profile.
Without the recessed box, fireplace mounts can stick out significantly from the wall. In this project, the recessed design helped the Samsung Frame TV Pro sit much closer to the surface for a cleaner architectural appearance.

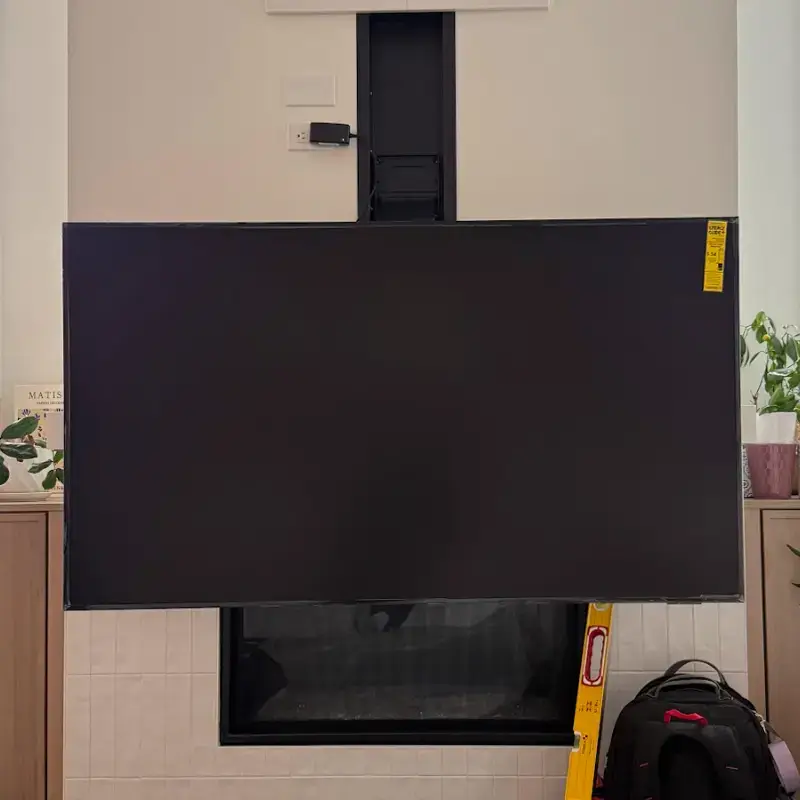

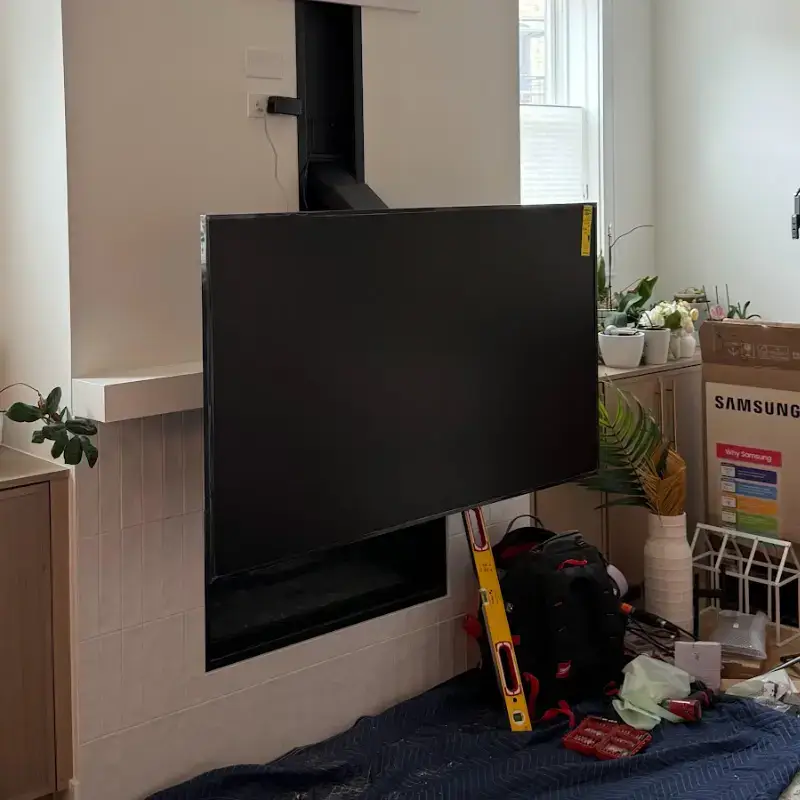

Lowered Viewing Position
When lowered, the TV moves into a much more comfortable viewing position for movies, sports, and everyday use.
The MantelMount system provides smooth motion while maintaining stability and alignment throughout movement.
This gives homeowners the best of both worlds: elevated artwork appearance when not in use and proper ergonomic viewing when watching TV.

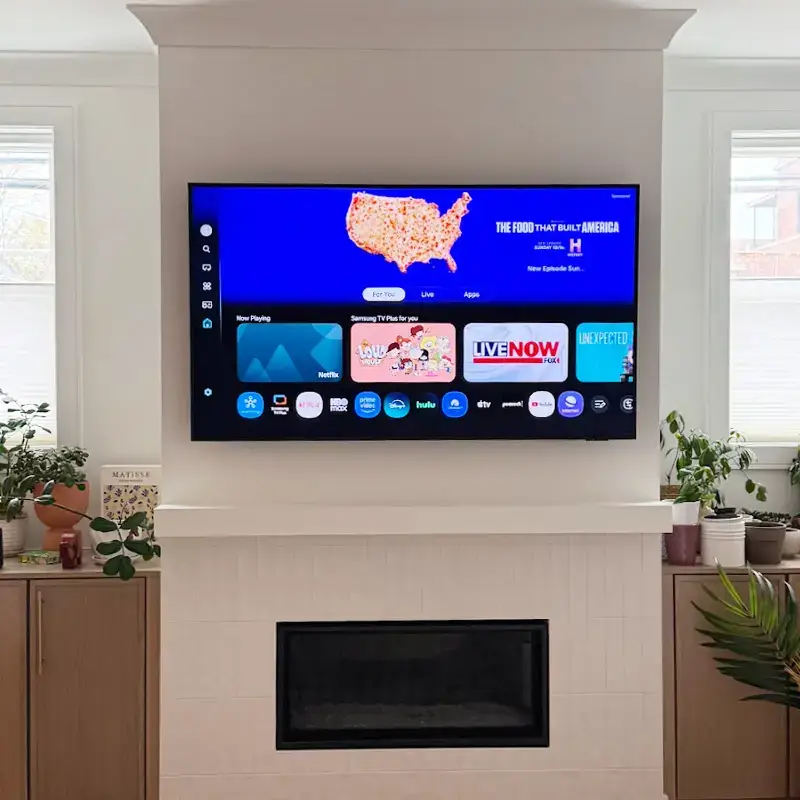

Final Installation Result
The final result delivered exactly what the homeowner wanted: a modern fireplace setup with a nearly flush Samsung Frame TV appearance and fully functional pull-down viewing flexibility.
When raised, the television blends naturally into the room like framed artwork. When lowered, it provides a comfortable and immersive viewing experience without neck strain.
Need Professional Samsung Frame TV Installation in Chicago?
Chicago Mounting specializes in:
- Samsung Frame TV installation
- MantelMount installation
- Fireplace TV mounting
- Recessed box installation
- Hidden wire solutions
- Soundbar mounting
- Custom TV installations
We provide professional TV mounting services throughout Chicago and surrounding suburbs.
Samsung Frame TV Fireplace Installation – Common Questions
Before installing a Samsung Frame TV above a fireplace, homeowners usually have a few important questions about recessed mounts, viewing angles, and cable management. Here are some of the most common questions we hear during fireplace TV installations in Chicago.
Is it safe to mount a Samsung Frame TV above a fireplace?
Yes, if heat levels are safe and the TV is anchored into studs or masonry, not just tile.
Why use the MantelMount MM815 with a recessed box?
The MantelMount MM815 combined with the RB100 recessed box creates a much cleaner low-profile appearance by allowing most of the mounting hardware to sit inside the wall cavity.
Does the TV sit closer to the wall with a recessed installation?
Yes. Recessing the mount into the wall significantly reduces the side profile and helps the Samsung Frame TV Pro achieve a cleaner flush appearance.
Can the MantelMount lower the TV for comfortable viewing?
Yes. The MantelMount system allows the TV to move down into a more ergonomic viewing position for movies, sports, and everyday use.
Do you hide the cables inside the wall?
Yes. In-wall cable management is highly recommended for fireplace TV installations to maintain a clean professional appearance and reduce visible wiring.
Can you install Samsung Frame TVs on tile or stone fireplaces?
Yes. We regularly install TVs on tile, stone, and drywall fireplace surfaces using the proper anchors, tools, and mounting methods.
Do I need a recessed power outlet behind the TV?
In many cases, yes. Recessed power and low-voltage solutions help the TV sit closer to the wall and improve the final appearance.
Do you provide Samsung Frame TV installation services in Chicago suburbs?
Yes. Chicago Mounting provides Samsung Frame TV, MantelMount, and fireplace TV installation services throughout Chicago and surrounding suburbs.
